Ecology Unit
Odour, Smoke & Grease Removal for Commercial Kitchens
Overview
Ecology Unit is designed and built specifically for the removal of hot air with smoke, oil and grease particles from the commercial kitchens to eliminate or reduce odor to an acceptable level if equipped with the optional odor control section. With fire rated fans and UL certified filters, you are assured to get the perfect Ecology Unit from one of the best Ecology Unit manufacturers in UAE.
Applications & Use Cases
These units are specifically designed to address the complex climate control requirements of modern infrastructure. They provide optimal indoor air quality by continuously circulating and filtering the air, making them essential for high-occupancy areas such as shopping malls, corporate offices, and educational institutions.
Furthermore, they are highly adaptable to specialized environments like healthcare facilities and pharmaceutical plants where strict hygiene and temperature control are paramount. Their robust construction ensures long-term reliability even under continuous operation.
Technical Specifications
| Capacity Range | Varies by model configuration |
|---|---|
| Materials | Galvanized Steel / Aluminum Profile |
| Insulation | Injected Polyurethane / Rockwool |
| Standards Met | AHRI, ASHRAE, Eurovent compliance |
Configurations
- Capacity Range: 300 - 12,500 CFM
- Wall/Inline/Custom Mounting
- Optional Odour Control Section
Key Features
- Capacity range: 300 LPS to 12,500 LPS
- Double skin construction
- Multi stage filtration for effective oil, grease, smoke and odour removal
- ETL listed Electrostatic Precipitator for handling grease, oil and smoke with manual wash
- Washable type, 2 inches thick metallic panel filters, G2 class, dust weight arrestance of 75 to 85% as per EN 779 standards
- Disposable type 4 inches thick fibre glass panel filters, G4 class, dust weight arrestance more than 90% as per EN 779 standards
- Disposable type, 24 inches deep, fibre glass pocket filters, F7 class, dust spot efficiency between 80 to 90% as per EN 779 standards
- Refillable type, 24 inches deep, canister type activated carbon filters with dwell time of 0.1 second
- UL certified filters
- Rugged design, all removable panels
Standards & Compliance
Need a custom solution?
Our engineering team can design equipment tailored to your specific requirements.

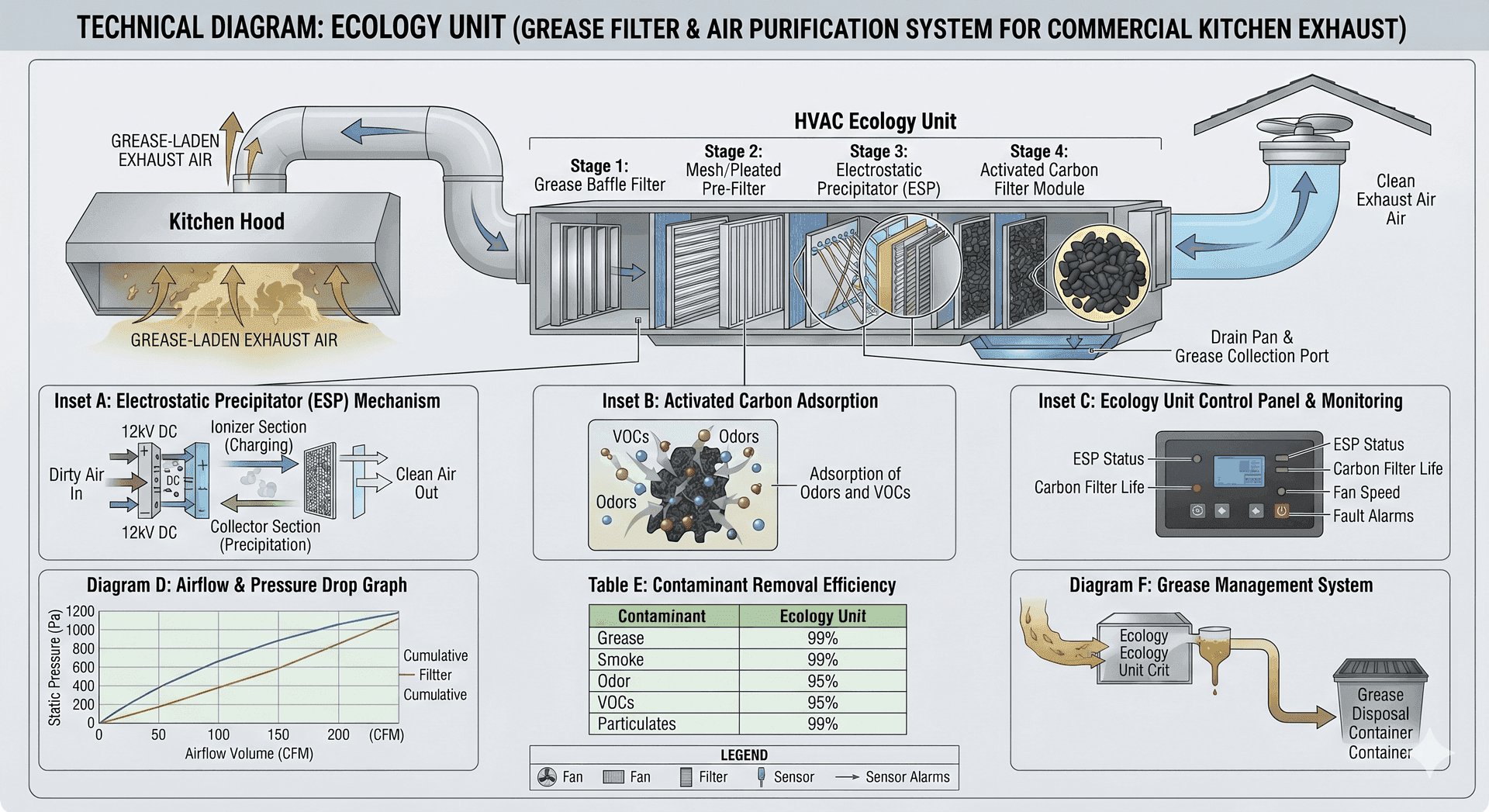

Talk to an EngineerTechnical Diagrams
Key component layout and system architecture for this product.

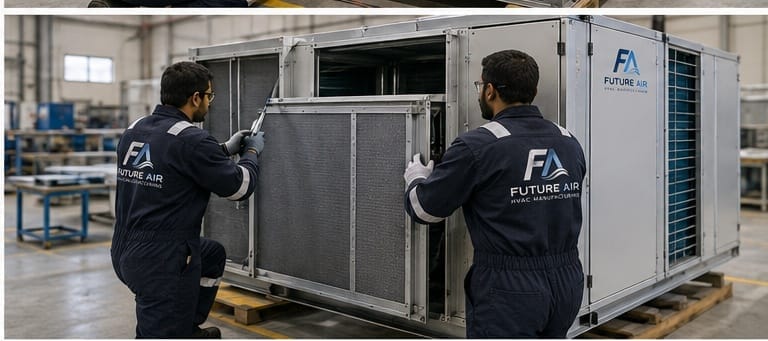

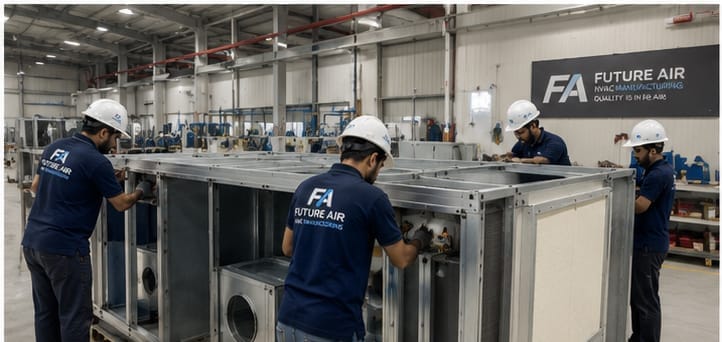

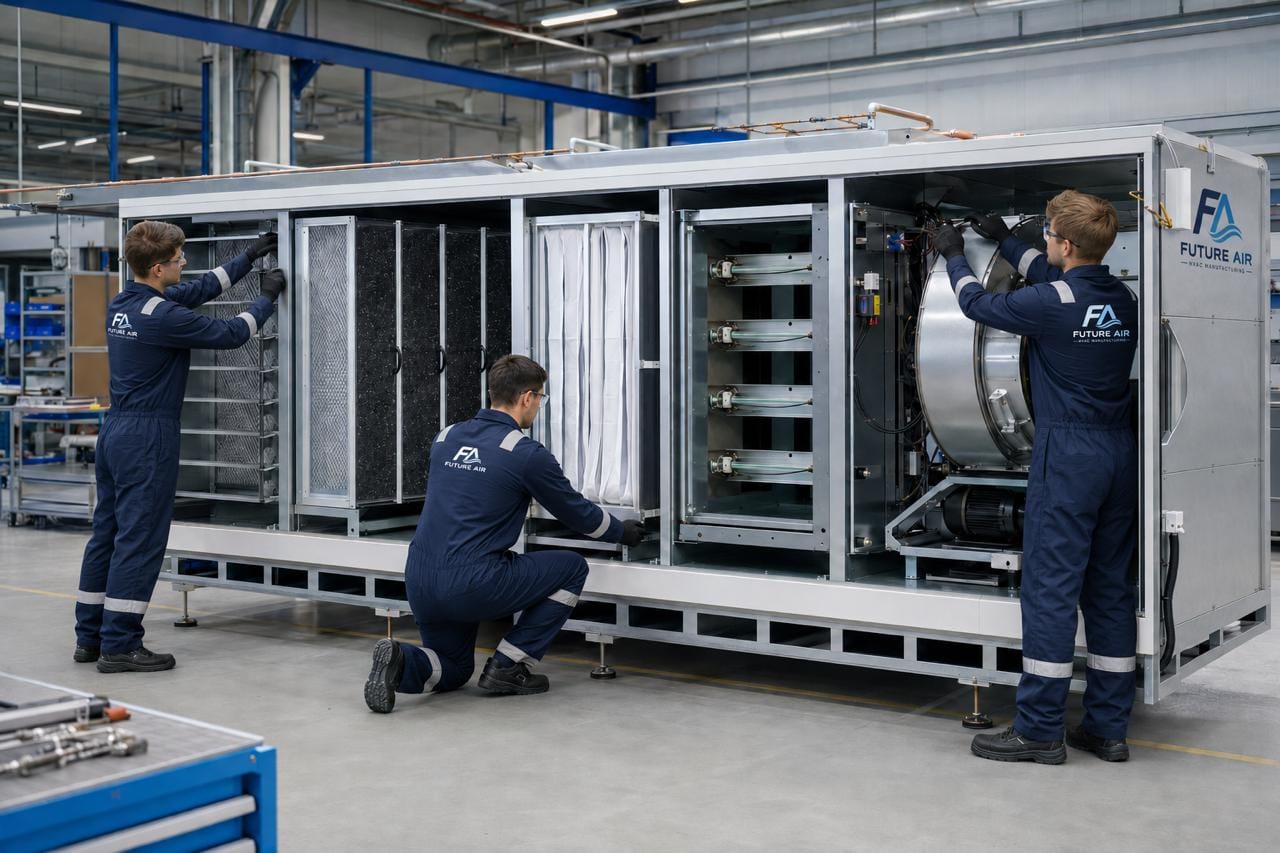

Machine Gallery
Product images from our manufacturing facility.
Technical Datasheet
Official technical specifications, engineering parameters, and performance charts for Ecology Unit.
